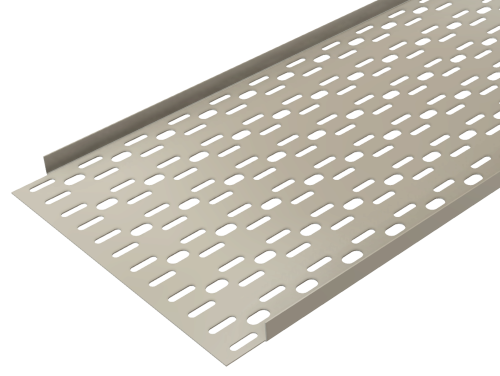

Lit Cable Tray Straight X 3m

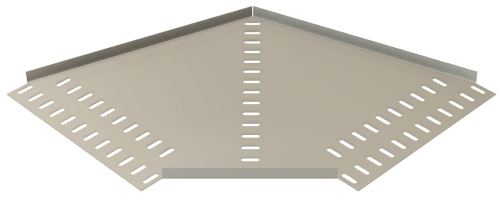

Lit Cable Tray Horizontal Bend

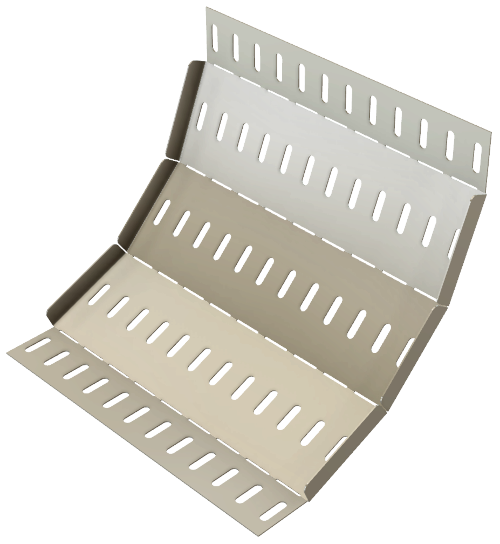

Lit Cable Tray Internal Bend

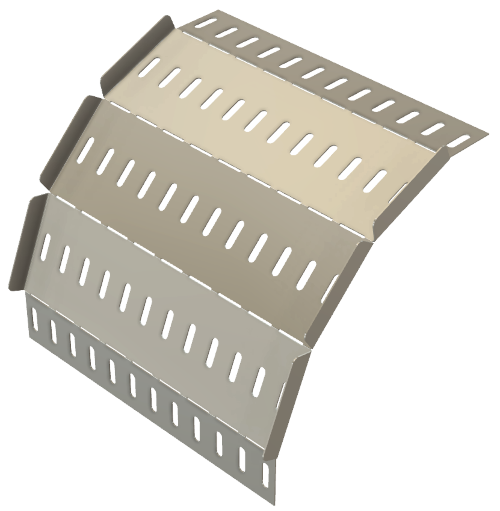

Lit Cable Tray External Bend
| TRAY HEIGHT |
THICKNESS (mm) |
TRAY WIDTH (mm) |
MATERIAL |
SPAN 3M |
90° HORIZONTAL BEND |
90° INTERNAL BEND |
90° EXTERNAL BEND |
TEE |

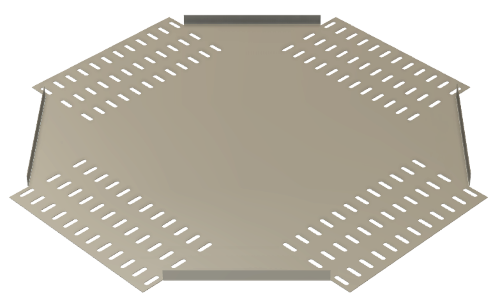

4-WAY |
| 12mm |
1.0 |
LIT12 X 50 WIDTH |
PRE-GALVANISED Z275 |
MA-0000-01 |
MA-0004-01 |
MA-0007-01 |
MA-000A-01 |
MA-000C-01 |
MA-000E-01 |
| 12mm |
1.0 |
LIT12 X 76 WIDTH |
PRE-GALVANISED Z275 |
MA-0000-02 |
MA-0004-02 |
MA-0007-02 |
MA-000A-02 |
MA-000C-02 |
MA-000E-02 |
| 19mm |
1.0 |
LIT19 X 101 WIDTH |
PRE-GALVANISED Z275 |
MA-0000-03 |
MA-0004-03 |
MA-0007-03 |
MA-000A-03 |
MA-000C-03 |
MA-000E-03 |
| 19mm |
1.0 |
LIT19 X 152 WIDTH |
PRE-GALVANISED Z275 |
MA-0000-04 |
MA-0004-04 |
MA-0007-04 |
MA-000A-04 |
MA-000C-04 |
MA-000E-04 |
| 19mm |
1.0 |
LIT19 X 203 WIDTH |
PRE-GALVANISED Z275 |
MA-0000-05 |
MA-0004-05 |
MA-0007-05 |
MA-000A-05 |
MA-000C-05 |
MA-000E-05 |
| 19mm |
1.0 |
LIT19 X 228 WIDTH |
PRE-GALVANISED Z275 |
MA-0000-06 |
MA-0004-06 |
MA-0007-06 |
MA-000A-06 |
MA-000C-06 |
MA-000E-06 |
| 19mm |
1.0 |
LIT19 X 304 WIDTH |
PRE-GALVANISED Z275 |
MA-0000-07 |
MA-0004-07 |
MA-0007-07 |
MA-000A-07 |
MA-000C-08 |
MA-000E-07 |
