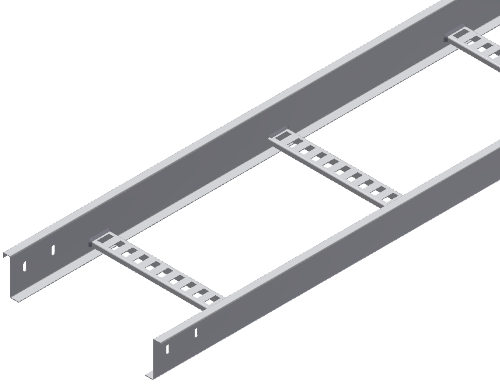

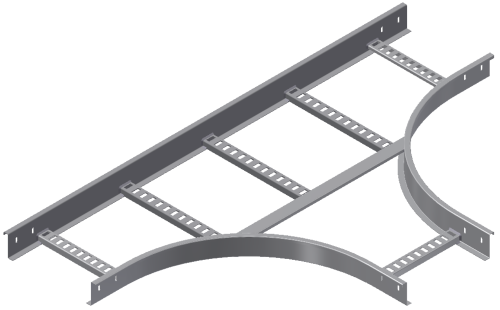

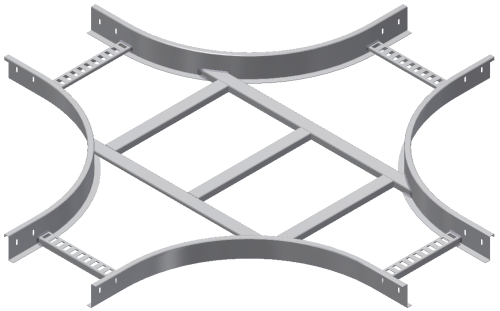

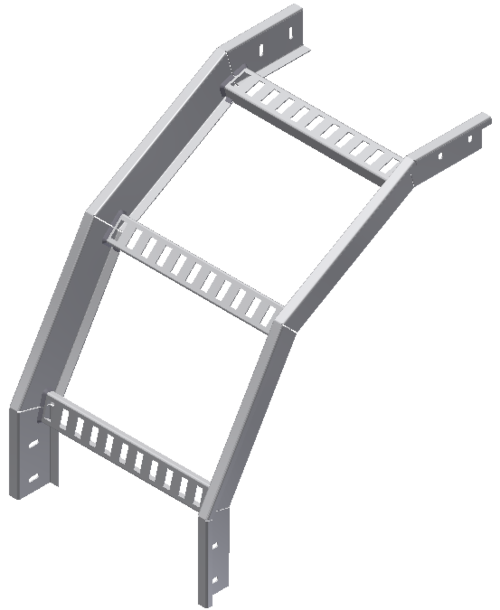

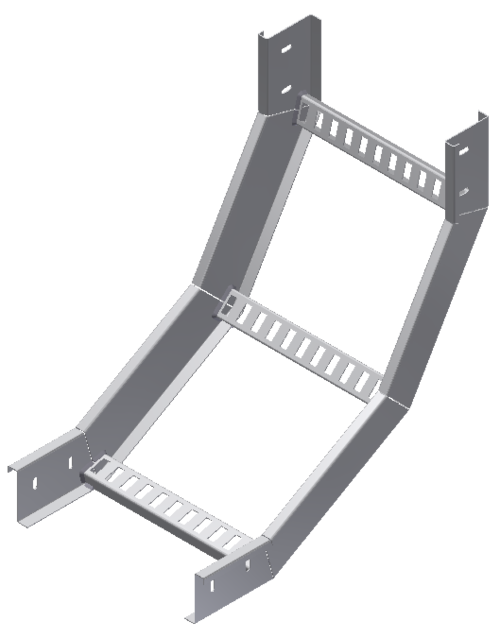

| CABLE HEIGHT | THICKNESS (mm) | CABLE WIDTH (mm) | MATERIAL | LOAD (Kg/m) | SPAN 3M | 90° HORIZONTAL BEND | 90° INTERNAL BEND | 90° EXTERNAL BEND | TEE | 4-WAY | SPLICE SET |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 76mm | 1,6 | M76 X 100 WIDTH | HDG | NA | MK-0004-01 | MK-0007-01 | MK-001A-01 | MK-002A-01 | MK-0039-01 | MK-003C-01 | MK-0003-01 |
| 76mm | 1,6 | M76 X 150 WIDTH | HDG | NA | MK-0004-02 | MK-0007-02 | MK-001A-02 | MK-002A-02 | MK-0039-02 | MK-003C-02 | MK-0003-01 |
| 76mm | 1,6 | M76 X 200 WIDTH | HDG | 140 Kg/m | MK-0004-03 | MK-0007-03 | MK-001A-03 | MK-002A-03 | MK-0039-03 | MK-003C-03 | MK-0003-01 |
| 76mm | 1,6 | M76 X 300 WIDTH | HDG | 140 Kg/m | MK-0004-04 | MK-0007-04 | MK-001A-04 | MK-002A-04 | MK-0039-04 | MK-003C-04 | MK-0003-01 |
| 76mm | 1,6 | M76 X 400 WIDTH | HDG | 140 Kg/m | MK-0004-05 | MK-0007-05 | MK-001A-05 | MK-002A-05 | MK-0039-05 | MK-003C-05 | MK-0003-01 |
| 76mm | 1,6 | M76 X 500 WIDTH | HDG | 140 Kg/m | MK-0004-06 | MK-0007-06 | MK-001A-06 | MK-002A-06 | MK-0039-06 | MK-003C-06 | MK-0003-01 |
| 76mm | 1,6 | M76 X 600 WIDTH | HDG | 140 Kg/m | MK-0004-07 | MK-0007-07 | MK-001A-07 | MK-002A-07 | MK-0039-07 | MK-003C-07 | MK-0003-01 |
| 76mm | 1,6 | M76 X 800 WIDTH | HDG | 140 Kg/m | MK-0004-08 | MK-0007-08 | MK-001A-08 | MK-002A-08 | MK-0039-08 | MK-003C-08 | MK-0003-01 |
| 76mm | 1,6 | M76 X 1000 WIDTH | HDG | 140 Kg/m | MK-0004-09 | MK-0007-09 | MK-001A-09 | MK-002A-09 | MK-0039-09 | MK-003C-09 | MK-0003-01 |
SPLICE PLATES NOT SUPPLIED WITH STRAIGHT SECTIONS. ORDER STANDARD SPLICE SEPARATELY. ONE PAIR REQUIRED TO CONNECT TO SYSTEM.
ALL TESTS PER NEMA VE-1. LOAD SAFETY FACTOR IS 1.5
NA = NOT AVAILABLE
