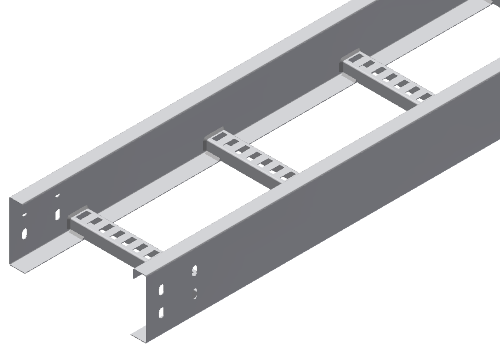

M20B Cable Ladder Straight X 6m

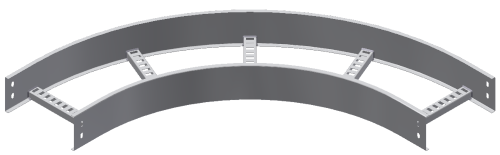

M20B Horizontal Bend Radius 650

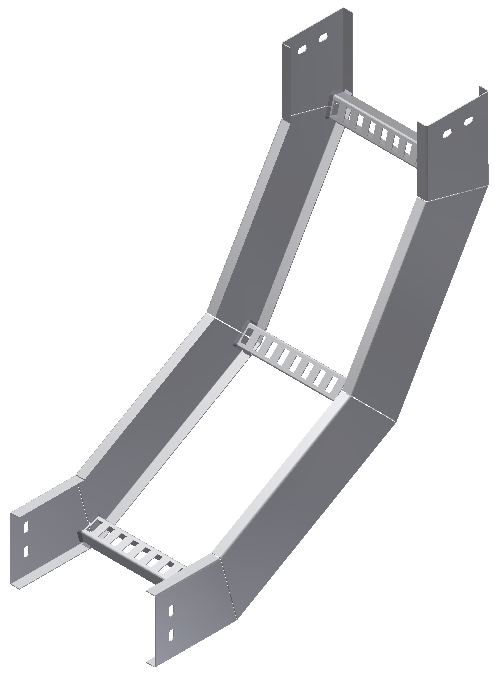

M20B Internal Bend Radius 650

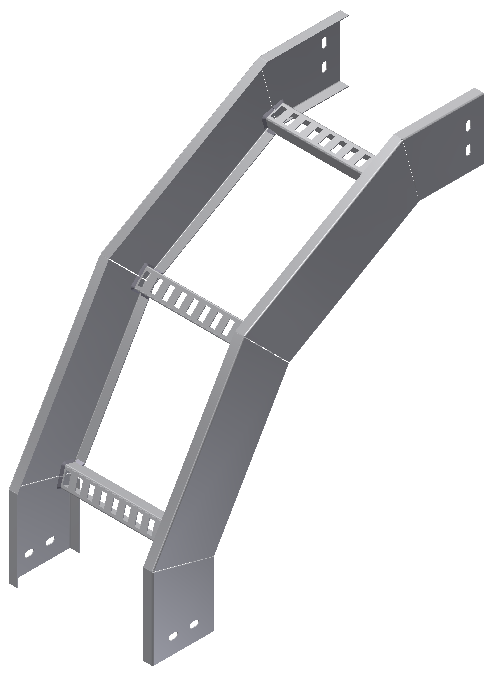

M20B External Bend Radius 650
M20B LONG BOW CABLE LADDER
| CABLE HEIGHT |
THICKNESS (mm) |
CABLE WIDTH (mm) |
MATERIAL |
LOAD (Kg/m) |
SPAN 3M |
90° HORIZONTAL BEND |
90° INTERNAL BEND |
90° EXTERNAL BEND |

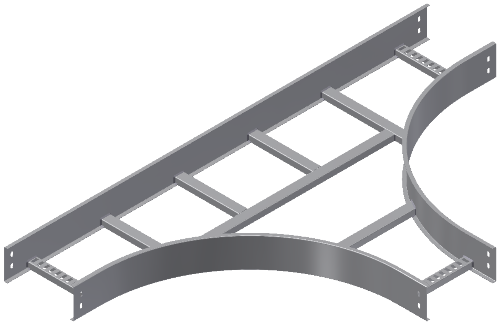

TEE |

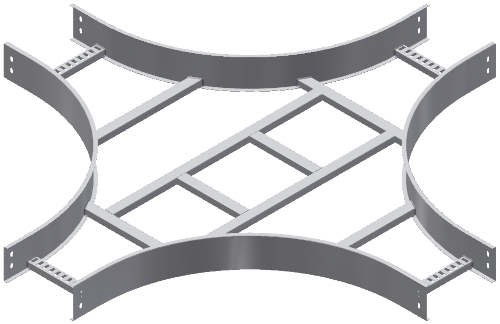

4-WAY |

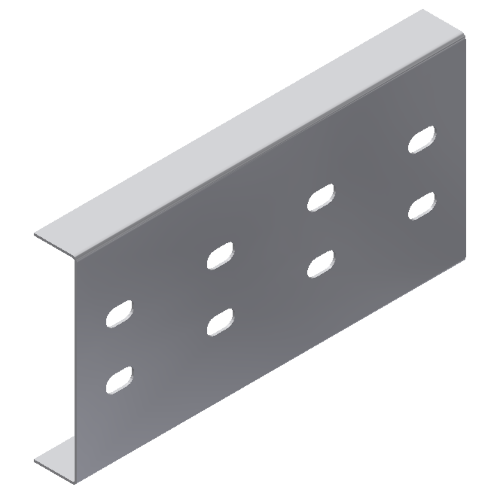

SPLICE SET |
| 130mm |
1,6 |
M20B X 150 WIDTH |
HDG |
112 Kg/m |
MP-0003-01 |
MP-0006-01 |
MP-0019-01 |
MP-0029-01 |
MP-0038-01 |
MP-003B-01 |
MP-0002-01 |
| 130mm |
1,6 |
M20B X 200 WIDTH |
HDG |
112 Kg/m |
MP-0003-02 |
MP-0006-02 |
MP-0019-02 |
MP-0029-02 |
MP-0038-02 |
MP-003B-02 |
MP-0002-01 |
| 130mm |
1,6 |
M20B X 300 WIDTH |
HDG |
112 Kg/m |
MP-0003-03 |
MP-0006-03 |
MP-0019-03 |
MP-0029-03 |
MP-0038-03 |
MP-003B-03 |
MP-0002-01 |
| 130mm |
1,6 |
M20B X 400 WIDTH |
HDG |
112 Kg/m |
MP-0003-04 |
MP-0006-04 |
MP-0019-04 |
MP-0029-04 |
MP-0038-04 |
MP-003B-04 |
MP-0002-01 |
| 130mm |
1,6 |
M20B X 500 WIDTH |
HDG |
112 Kg/m |
MP-0003-05 |
MP-0006-05 |
MP-0019-05 |
MP-0029-05 |
MP-0038-05 |
MP-003B-05 |
MP-0002-01 |
| 130mm |
1,6 |
M20B X 600 WIDTH |
HDG |
112 Kg/m |
MP-0003-06 |
MP-0006-06 |
MP-0019-06 |
MP-0029-06 |
MP-0038-06 |
MP-003B-06 |
MP-0002-01 |
| 130mm |
1,6 |
M20B X 800 WIDTH |
HDG |
112 Kg/m |
MP-0003-07 |
MP-0006-07 |
MP-0019-07 |
MP-0029-07 |
MP-0038-07 |
MP-003B-07 |
MP-0002-01 |
| 130mm |
1,6 |
M20B X 1000 WIDTH |
HDG |
112 Kg/m |
MP-0003-08 |
MP-0006-08 |
MP-0019-08 |
MP-0029-08 |
MP-0038-08 |
MP-003B-08 |
MP-0002-01 |
M20C LONG BOW CABLE LADDER
| CABLE HEIGHT |
THICKNESS (mm) |
CABLE WIDTH (mm) |
MATERIAL |
LOAD (Kg/m) |
SPAN 3M |
90° HORIZONTAL BEND |
90° INTERNAL BEND |
90° EXTERNAL BEND |
TEE |
4-WAY |
SPLICE SET |
| 150mm |
1,6 |
M20C X 150 WIDTH |
HDG |
112 Kg/m |
MQ-0003-01 |
MQ-0006-01 |
MQ-001A-01 |
MQ-002A-01 |
MQ-0039-01 |
MQ-003C-01 |
MQ-0002-01 |
| 150mm |
1,6 |
M20C X 200 WIDTH |
HDG |
112 Kg/m |
MQ-0003-02 |
MQ-0006-02 |
MQ-001A-02 |
MQ-002A-02 |
MQ-0039-02 |
MQ-003C-02 |
MQ-0002-01 |
| 150mm |
1,6 |
M20C X 300 WIDTH |
HDG |
112 Kg/m |
MQ-0003-03 |
MQ-0006-03 |
MQ-001A-03 |
MQ-002A-03 |
MQ-0039-03 |
MQ-003C-03 |
MQ-0002-01 |
| 150mm |
1,6 |
M20C X 400 WIDTH |
HDG |
112 Kg/m |
MQ-0003-04 |
MQ-0006-04 |
MQ-001A-04 |
MQ-002A-04 |
MQ-0039-04 |
MQ-003C-04 |
MQ-0002-01 |
| 150mm |
1,6 |
M20C X 500 WIDTH |
HDG |
112 Kg/m |
MQ-0003-05 |
MQ-0006-05 |
MQ-001A-05 |
MQ-002A-05 |
MQ-0039-05 |
MQ-003C-05 |
MQ-0002-01 |
| 150mm |
1,6 |
M20C X 600 WIDTH |
HDG |
112 Kg/m |
MQ-0003-06 |
MQ-0006-06 |
MQ-001A-06 |
MQ-002A-06 |
MQ-0039-06 |
MQ-003C-06 |
MQ-0002-01 |
| 150mm |
1,6 |
M20C X 800 WIDTH |
HDG |
112 Kg/m |
MQ-0003-07 |
MQ-0006-07 |
MQ-001A-07 |
MQ-002A-07 |
MQ-0039-07 |
MQ-003C-07 |
MQ-0002-01 |
| 150mm |
1,6 |
M20C X 1000 WIDTH |
HDG |
112 Kg/m |
MQ-0003-08 |
MQ-0006-08 |
MQ-001A-08 |
MQ-002A-08 |
MQ-0039-08 |
MQ-003C-08 |
MQ-0002-01 |
SPLICE PLATES NOT SUPPLIED WITH STRAIGHT SECTIONS. ORDER STANDARD SPLICE SEPARATELY. ONE PAIR REQUIRED TO CONNECT TO SYSTEM.
ALL TESTS PER NEMA VE-1. LOAD SAFETY FACTOR IS 1.5
NA = NOT AVAILABLE
