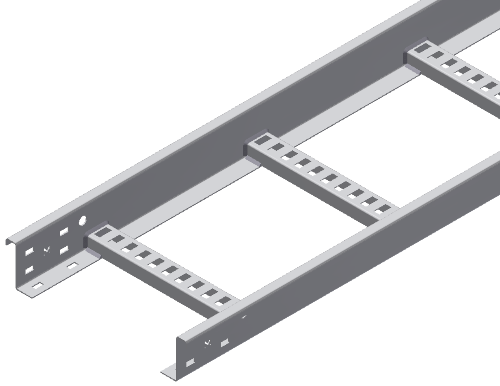

M75 Cable Ladder Straight X 3m

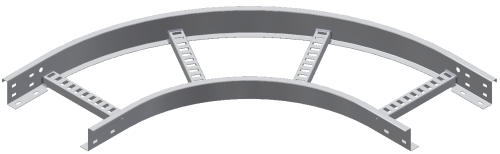

M75 Horizontal Bend Radius 450

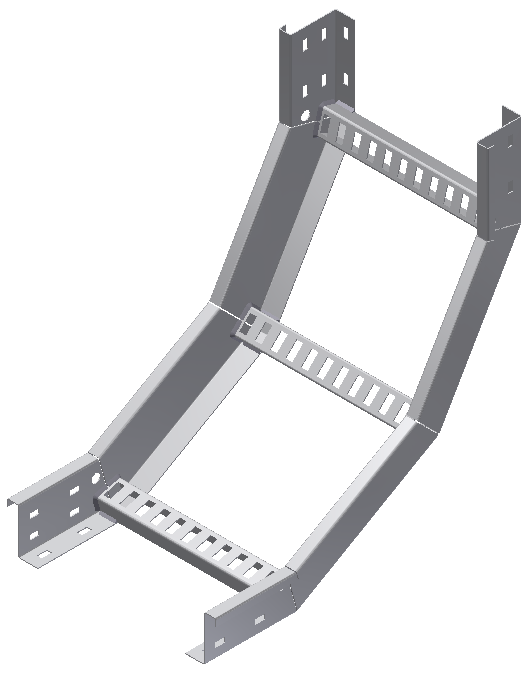

M75 Internal Bend Radius 450

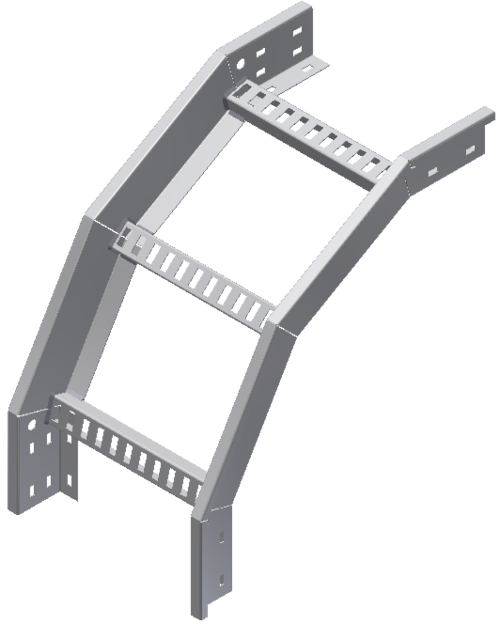

M75 External Bend Radius 450
M75 STRONG BOW CABLE LADDER
| CABLE HEIGHT |
THICKNESS (mm) |
CABLE WIDTH (mm) |
MATERIAL |
LOAD (Kg/m) |
SPAN 3M |
90° HORIZONTAL BEND |
90° INTERNAL BEND |
90° EXTERNAL BEND |

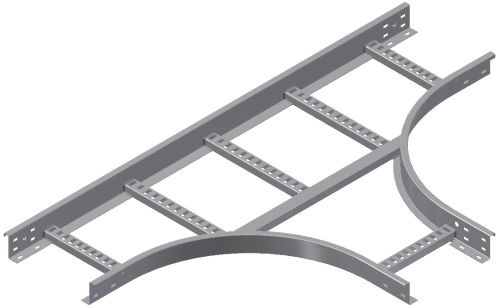

TEE |

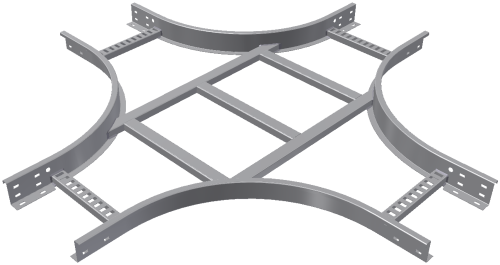

4-WAY |
SPLICE SET |
| 75mm |
2,0 |
M75 X 100 WIDTH |
HDG |
NA |
MM-0004-01 |
MM-001A-01 |
MM-001A-01 |
MM-002A-01 |
MM-0039-01 |
MM-003C-01 |
MM-0003-01 |
| 75mm |
2,0 |
M75 X 150 WIDTH |
HDG |
NA |
MM-0004-02 |
MM-001A-02 |
MM-001A-02 |
MM-002A-02 |
MM-0039-02 |
MM-003C-02 |
MM-0003-01 |
| 75mm |
2,0 |
M75 X 200 WIDTH |
HDG |
140 Kg/m |
MM-0004-03 |
MM-001A-03 |
MM-001A-03 |
MM-002A-03 |
MM-0039-03 |
MM-003C-03 |
MM-0003-01 |
| 75mm |
2,0 |
M75 X 300 WIDTH |
HDG |
140 Kg/m |
MM-0004-04 |
MM-001A-04 |
MM-001A-04 |
MM-002A-04 |
MM-0039-04 |
MM-003C-04 |
MK-0003-01 |
| 75mm |
2,0 |
M75 X 400 WIDTH |
HDG |
140 Kg/m |
MM-0004-05 |
MM-001A-05 |
MM-001A-05 |
MM-002A-05 |
MM-0039-05 |
MM-003C-05 |
MM-0003-01 |
| 75mm |
2,0 |
M75 X 500 WIDTH |
HDG |
140 Kg/m |
MM-0004-06 |
MM-001A-06 |
MM-001A-06 |
MM-002A-06 |
MM-0039-06 |
MM-003C-06 |
MM-0003-01 |
| 75mm |
2,0 |
M75 X 600 WIDTH |
HDG |
140 Kg/m |
MM-0004-07 |
MM-001A-07 |
MM-001A-07 |
MM-002A-07 |
MM-0039-07 |
MM-003C-07 |
MM-0003-01 |
| 75mm |
2,0 |
M75 X 800 WIDTH |
HDG |
140 Kg/m |
MM-0004-08 |
MM-001A-08 |
MM-001A-08 |
MM-002A-08 |
MM-0039-08 |
MM-003C-08 |
MM-0003-01 |
| 75mm |
2,0 |
M75 X 1000 WIDTH |
HDG |
140 Kg/m |
MM-0004-09 |
MM-001A-09 |
MM-001A-09 |
MM-002A-09 |
MM-0039-09 |
MM-003C-09 |
MM-0003-01 |
M100 STRONG BOW CABLE LADDER
| CABLE HEIGHT |
THICKNESS (mm) |
CABLE WIDTH (mm) |
MATERIAL |
LOAD (Kg/m) |
SPAN 3M |
90° HORIZONTAL BEND |
90° INTERNAL BEND |
90° EXTERNAL BEND |
TEE |
4-WAY |
SPLICE SET |
| 100mm |
2,0 |
M100 X 100 WIDTH |
HDG |
NA |
MV-0003-01 |
MV-0006-01 |
MV-001C-01 |
MV-002B-01 |
MV-003A-01 |
MV-003D-01 |
MV-0002-01 |
| 100mm |
2,0 |
M100 X 150 WIDTH |
HDG |
NA |
MV-0003-02 |
MV-0006-02 |
MV-001C-02 |
MV-002B-02 |
MV-003A-02 |
MV-003D-02 |
MV-0002-01 |
| 100mm |
2,0 |
M100 X 200 WIDTH |
HDG |
140 Kg/m |
MV-0003-03 |
MV-0006-03 |
MV-001C-03 |
MV-002B-03 |
MV-003A-03 |
MV-003D-03 |
MV-0002-01 |
| 100mm |
2,0 |
M100 X 300 WIDTH |
HDG |
140 Kg/m |
MV-0003-04 |
MV-0006-04 |
MV-001C-04 |
MV-002B-04 |
MV-003A-04 |
MV-003D-04 |
MV-0002-01 |
| 100mm |
2,0 |
M100 X 400 WIDTH |
HDG |
140 Kg/m |
MV-0003-05 |
MV-0006-05 |
MV-001C-05 |
MV-002B-05 |
MV-003A-05 |
MV-003D-05 |
MV-0002-01 |
| 100mm |
2,0 |
M100 X 500 WIDTH |
HDG |
140 Kg/m |
MV-0003-06 |
MV-0006-06 |
MV-001C-06 |
MV-002B-06 |
MV-003A-06 |
MV-003D-06 |
MV-0002-01 |
| 100mm |
2,0 |
M100 X 600 WIDTH |
HDG |
140 Kg/m |
MV-0003-07 |
MV-0006-07 |
MV-001C-07 |
MV-002B-07 |
MV-003A-07 |
MV-003D-07 |
MV-0002-01 |
| 100mm |
2,0 |
M100 X 800 WIDTH |
HDG |
140 Kg/m |
MV-0003-08 |
MV-0006-08 |
MV-001C-08 |
MV-002B-08 |
MV-003A-08 |
MV-003D-08 |
MV-0002-01 |
| 100mm |
2,0 |
M100 X 1000 WIDTH |
HDG |
140 Kg/m |
MV-0003-09 |
MV-0006-09 |
MV-001C-09 |
MV-002B-09 |
MV-003A-09 |
MV-003D-09 |
MV-0002-01 |
M150 STRONG BOW CABLE LADDER
| CABLE HEIGHT |
THICKNESS (mm) |
CABLE WIDTH (mm) |
MATERIAL |
LOAD (Kg/m) |
SPAN 3M |
90° HORIZONTAL BEND |
90° INTERNAL BEND |
90° EXTERNAL BEND |
TEE |
4-WAY |
SPLICE SET |
| 150mm |
3,0 |
M150 X 100 WIDTH |
HDG |
NA |
MN-0003-01 |
MN-0006-01 |
MN-0019-01 |
MN-0029-01 |
MN-0038-01 |
MN-003B-01 |
MN-0002-01 |
| 150mm |
3,0 |
M150 X 150 WIDTH |
HDG |
NA |
MN-0003-02 |
MN-0006-02 |
MN-0019-02 |
MN-0029-02 |
MN-0038-02 |
MN-003B-02 |
MN-0002-01 |
| 150mm |
3,0 |
M150 X 200 WIDTH |
HDG |
140 Kg/m |
MN-0003-03 |
MN-0006-03 |
MN-0019-03 |
MN-0029-03 |
MN-0038-03 |
MN-003B-03 |
MN-0002-01 |
| 150mm |
3,0 |
M150 X 300 WIDTH |
HDG |
140 Kg/m |
MN-0003-04 |
MN-0006-04 |
MN-0019-04 |
MN-0029-04 |
MN-0038-04 |
MN-003B-04 |
MN-0002-01 |
| 150mm |
3,0 |
M150 X 400 WIDTH |
HDG |
140 Kg/m |
MN-0003-05 |
MN-0006-05 |
MN-0019-05 |
MN-0029-05 |
MN-0038-05 |
MN-003B-05 |
MN-0002-01 |
| 150mm |
3,0 |
M150 X 500 WIDTH |
HDG |
140 Kg/m |
MN-0003-06 |
MN-0006-06 |
MN-0019-06 |
MN-0029-06 |
MN-0038-06 |
MN-003B-06 |
MN-0002-01 |
| 150mm |
3,0 |
M150 X 600 WIDTH |
HDG |
140 Kg/m |
MN-0003-07 |
MN-0006-07 |
MN-0019-07 |
MN-0029-07 |
MN-0038-07 |
MN-003B-07 |
MN-0002-01 |
| 150mm |
3,0 |
M150 X 800 WIDTH |
HDG |
140 Kg/m |
MN-0003-08 |
MN-0006-08 |
MN-0019-08 |
MN-0029-08 |
MN-0038-08 |
MN-003B-08 |
MN-0002-01 |
| 150mm |
3,0 |
M150 X 1000 WIDTH |
HDG |
140 Kg/m |
MN-0003-09 |
MN-0006-09 |
MN-0019-09 |
MN-0029-09 |
MN-0038-09 |
MN-003B-09 |
MN-0002-01 |
SPLICE PLATES NOT SUPPLIED WITH STRAIGHT SECTIONS. ORDER STANDARD SPLICE SEPARATELY. ONE PAIR REQUIRED TO CONNECT TO SYSTEM.
ALL TESTS PER NEMA VE-1. LOAD SAFETY FACTOR IS 1.5
NA = NOT AVAILABLE
